MOJO2200curve - Portabel PA-Anläggning med Bluetooth!

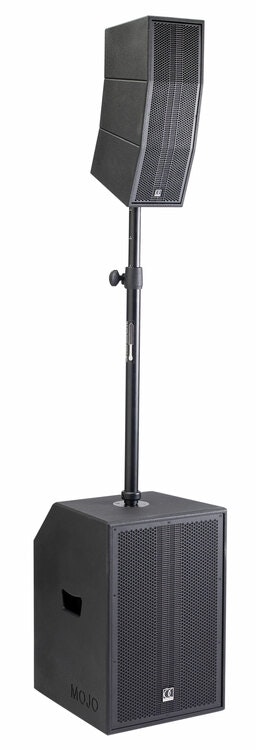

Compact, high-output curve array system

This new system uses a curve array architecture that provides an optimised, controlled sound diffusion at a sound pressure level of 128dB SPL.

With a total of 12 loudspeakers, the satellite has been specially designed to achieve an effective aperture of 100° horizontal and 70° vertical.

A powerful DSP

Bass is provided by a powerful 12-inch long-excursion bass driver mounted in a bass-reflex subwoofer.
The latter accommodates class D amplification with all the protections, a 4-input mixer with TWS Bluetooth^® and a powerful DSP offering the possibility to adjust the sound according to your desires.

Feel the power with TWS Bluetooth^®

Send music from your mobile to the MOJO2200curve Bluetooth^® module .
Thanks to the “True Wireless Stereo” technologie it will transmit the audio signal to a second MOJO and you'll enjoy stereo mode!

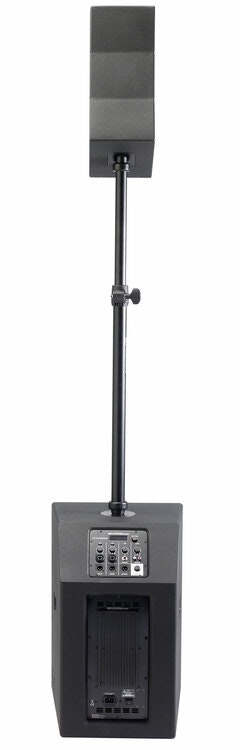

Pneumatic coupling bar

Installation is simplified thanks to the pneumatic coupling bar, which allows effortless height adjustment and also provides a wired connection between the amplifier and the satellite.

 Column
• Power: 300W RMS - 600W max.
• Nominal impedance: 6 Ohms
• Boomer: 3 X 5" neodynium
• Tweeter: 1 x 1 inch
• Dispersion: 120° x 70° (HxV)
• Connector: Insert into housing
• Dimensions: 188 x 517 x 243 mm
• Net weight: 8 kg

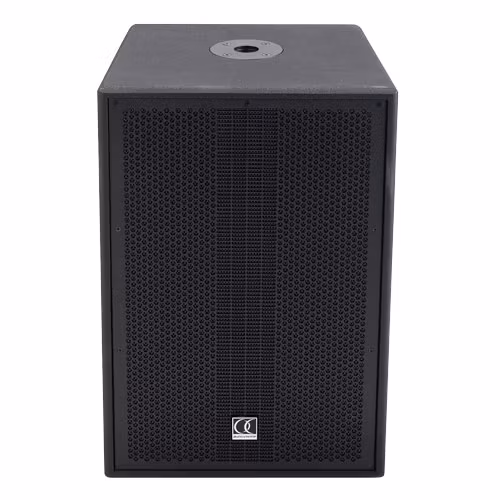

Subwoofer
• Power: 500W RMS -1000W max.
• Nominal impedance: 4 Ohms
• Boomer: 1 x 12 inches
• Dimensions: 366 x 625 x 541 mm
• Net weight: 27 kg

Complete system
• Frequency response 38 - 18,000Hz
• SPL max. (@1m) 128 dB

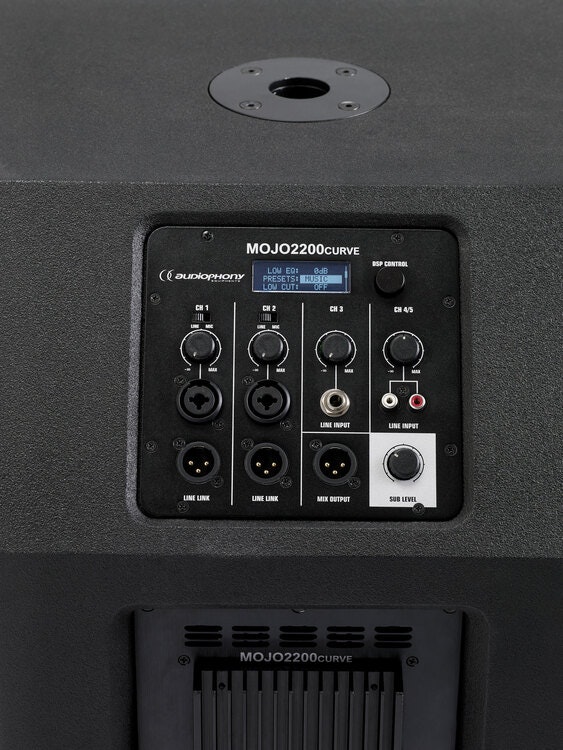

Amplifier module.
• Low stage: 1 x 700W RMS / 1400W Max at 6 Ohms
• Mid/high stage 1 x 300W RMS / 600W Max at 4 Ohms

• Inputs :
- CH1: 1 x XLR/Line Jack/Microphone Combo
- CH2 : 1 x XLR/Line Mic/Jack Combo
- CH3: 1 x Line Jack
- CH4/5: 1 x RCA L/R line + Bluetooth® input

• Input impedances
- Micro 1 & 2 : Balanced 40 KHoms
- Line 1 & 2 : Balanced 10 KHoms
- Line 3 : Balanced 20 KHoms
- Line 4 & 5 : Unbalanced 5 KHoms

• Outputs :
- 1 Insert on the top of the housing for the stellite
- 1 x balanced XLR MIX OUT for output to another system
- 2 x XLR LINE OUT balanced for the CH1 and 2 replica

• DSP
- 24 bit (1 in 2 out)
- EQ / Presets / low cut / Delay / Bluetooth® TWS

• Adjustment of levels on each channel + Master
• Adjusting the level of the cabinet
