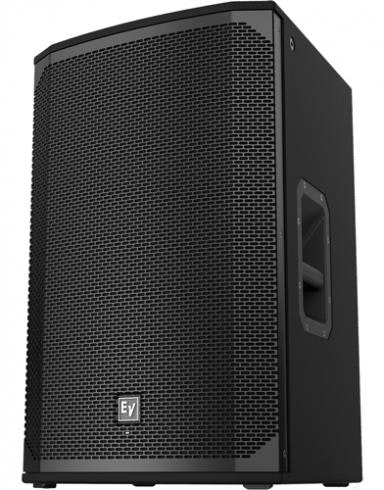

The EKX series is the newest member of the Electro-Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications. The EKX series features eight (8) models (four (4) powered and four(4) passive), including 12-inch and 15-inch two-way models and 15-inch and 18-inch subwoofers.EV-engineered components, Signal SynchronizedTransducers (SST) waveguide design provides precise coverage and superior sound quality at high SPLs. EV’s award-winning industrial design — with robust wood enclosures and durable EVCoat finish — ensures that EKX speakers look as great as they sound.EKX-12 delivers up to 131 dB SPL utilizing high-sensitivity transducers designed and engineered by EV (12-inch EVS-12M woofer coupled with a DH-1M 1-inch titanium compression driver). EKX passive models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures with internal bracing, durable EVCoat finish, eight (8) M10 threaded mounting points,
aluminum pole-mounts, and all-metal handles.
Specifikationer
Typ | Aktiv Högtalare |
---|---|
Spridning | 90˚ x 60˚ |
Effekt (RMS) | 1500 W RMS |
Frekvensomfång | (-3 dB): 55 Hz - 18 kHz |
Max SPL 1m | 134 dB |
Delningsfrekvens | 1.7 kHz |
Baselement | EVS-15M 381 mm (15 in) |
Kontakter in | XLR/TRS combo jack(1) Stereo RCA input, |
Kontakter ut | XLR link output |
Material | 15 mm plywood with EVCoat |
Färg | Svart |
Mått (BxHxD) | 685 mm x 432 mm x 429 mm |
Monteringsbygel | (8) M10 threaded mounting |
Vikt | 24,4 kg |
