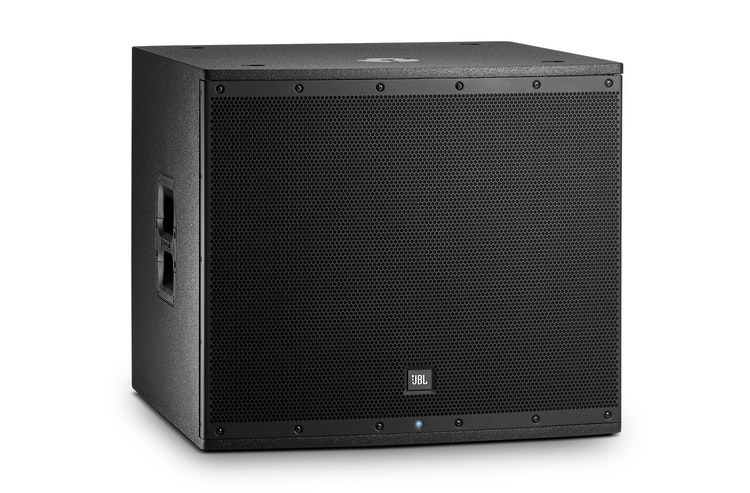

EON618S Aktiv 18" Baslåda

Self powered 18” Subwoofer

Maximum SPL Output

134 dB

Frequency Range (-10 dB)

31Hz –150Hz

Frequency Response (-3 dB)

42.5Hz – 150Hz

System Power Rating

1000W Peak, 500W Continuous

Input Impedance

22k (balanced)

Line Input Gain

0 to 36 dBu

Line

+14dBu

Connectors

2 x Balanced XLR-1/4” combination inputs;

2 x male XLR loop thru out

LED Indicators

Front Power LED (Defeatable, white) Rear Power LED (White), Bluetooth (Blue), EQ+ (Green) Preset (Green) Signal (Green) Limit (Orange)

Cooling

Passive

AC Power Input

100-120VAC 50/60Hz; 230-240VAC 50/60Hz

AC Power Consumption (120V~)

1/8th Power – 1.14A (Max), 1/4th Power – 1.71A (Max),

1/3rd Power – 2.03A (Max)

LF Driver

1 x JBL 618H 457mm (18”) woofer with 2” voice coil

Crossover Frequency

Selectable; 80 Hz, 100 hz, or 120 Hz

Material

Duraflex coated wooden enclosure

Suspension/Mounting

M20 Threaded Pole Cup

Handles

2

Grille

Powder coated, Obsidian, perforated steel with acoustically transparent black cloth backing

Dimensions (L x W x H)

582mm x 668mm x 645mm

(22.9” x 26.3” x 25.4”)

Weight

72 lbs (35.5 kg)

Shipping Weight

91 lbs (41.2 kg)

Shipping Dimensions (L x W x H)

803mm x 768mm x 631mm (31.6" x 30.2" x 25.1")
