PRX815W, 15"" 2-vägs topp/mon, 1500 W aktiv + WiFi

  • 9 500 kr

15” Two-Way Full-Range Main System/Floor Monitor with Wi-FiThe JBL PRX815W is a full-range speaker designed for main system and floor monitor applications. Feat

I lager.
Artikelnummer: 349
Dela

15” Two-Way Full-Range Main System/Floor Monitor with Wi-Fi

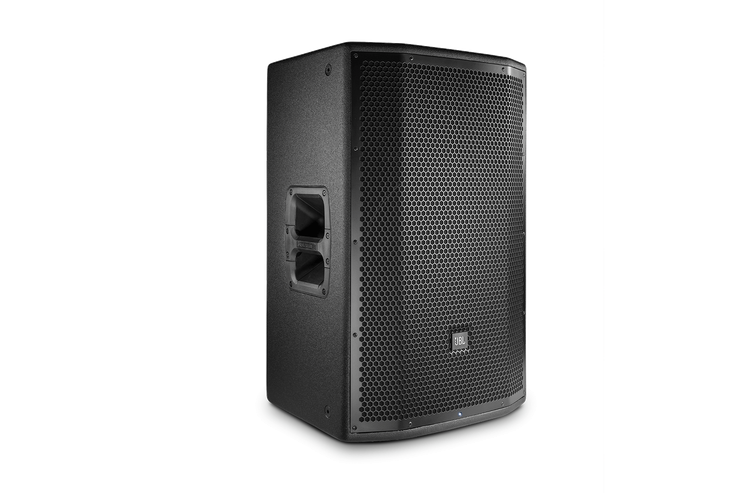

The JBL PRX815W is a full-range speaker designed for main system and floor monitor applications. Featuring a 15”, two-way, bass-reflex design powered by a 1500-watt class-D amplifier, PRX815W delivers incredible volume in a lightweight and compact form factor.



Compatible with HARMAN Connected PA

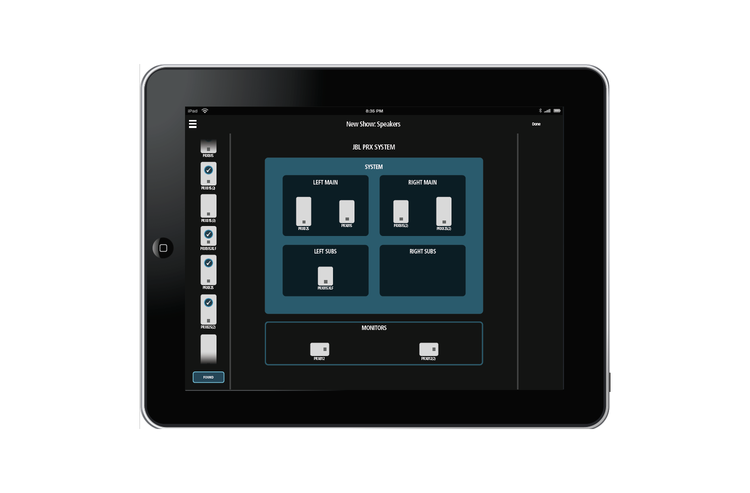

The PRX800W series integrates embedded ioSYS technology which enables easier setup and control when used with the HARMAN Connected PA app and compatible products. Connected PA delivers seamless plug-and-play operation with a variety of HARMAN equipment and enables you to control your entire live sound system with one app. Products within the Connected PA system self-identify and retain presets for effortless setup, and setup wizards help you quickly optimize speaker levels, configuration settings and EQ. Current products with embedded ioSYS technology and HARMAN Connected PA compatibility include the Ui24R mixer, JBL PRX800W loudspeakers, dbx Di1 direct boxes, and AKG P5i microphones. Learn more about HARMAN Connected PA.

FEATURES

  • Built-in Wi-Fi for wireless control of your system from anywhere in the venue

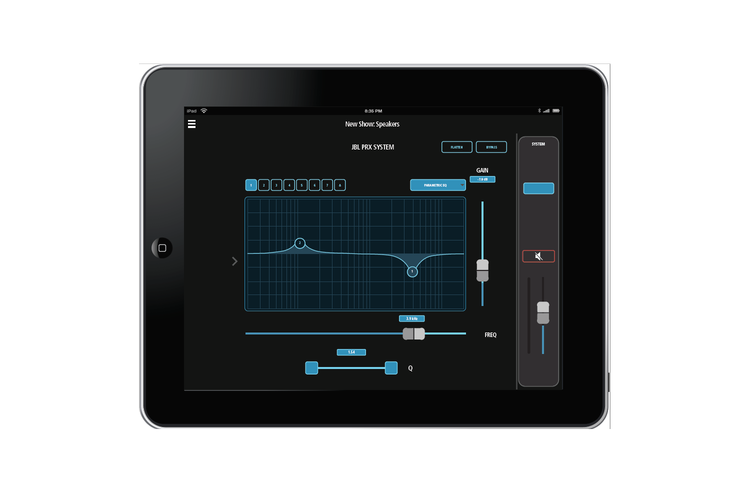

  • Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
  • Class-leading 1500-watt amplifier delivers ample power to fill your venue
  • JBL Differential Drive® transducers for higher SPL in a lightweight design
  • Next-generation JBL neodymium compression drivers
  • Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
  • Intelligent variable-speed fan activates only when needed to reduce noise
  • Updated tuning delivers flat frequency response and smooth off-axis behavior
  • Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles
  • Universal power supply for worldwide compatibility
  • dbx Type IV™ limiting ensures clear, accurate sound at high volumes
  • Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance





APPLICATIONS

^

  • The 2-way 15” offers the perfect balance between size and performance. The PRX815W truly is an exception; it’s small, light weight, versatile and powerful with remote Wi-Fi control of onboard DSP EQ parameters. The performance and asymmetrical design make this a perfect choice for musicians, entertainers and DJ’s when portability is key, or when hung by the suspension points, an exceptional light-duty installation speaker. All PRX800 Series speakers were designed to excel in sound reinforcement where challenging audio environments and loud volumes are the norm. For applications requiring full bandwidth sound reproduction, the PRX815W delivers the optimum balance. For live music, recorded music playback and speech the user has the option of tailoring the EQ. A microphone can be directly connected to the speaker input for quick PA applications. Coupled with a PRX800 sub-woofer the system becomes an efficient, full-range sound system.

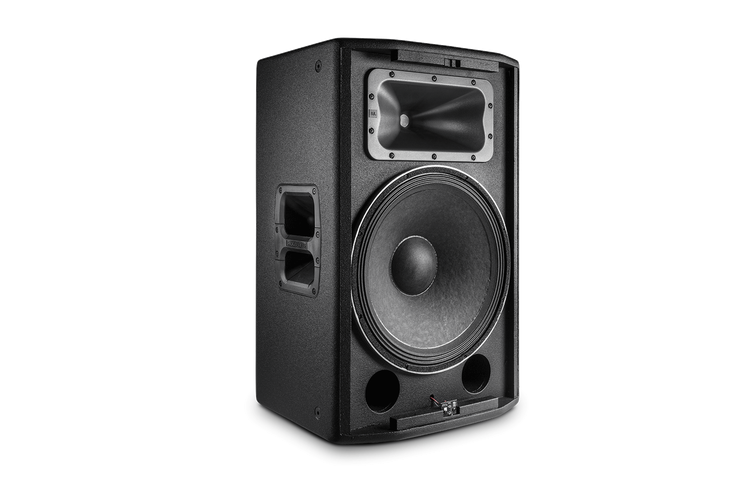

  • The PRX815W is comprised of 15” 275G Differential Drive® woofer, a 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1500 watt Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
  • All PRX800 cabinets are built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.

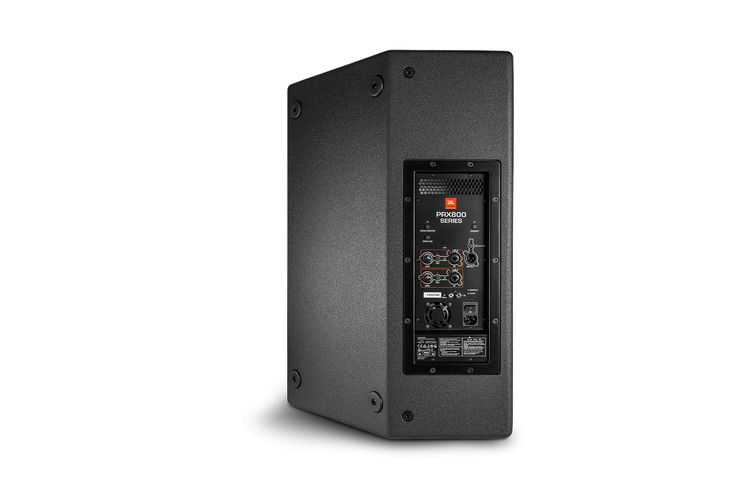

  • The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level via the level control knob.



SPECIFICATIONS

^

 System TypeSelf Powered 15”, two-way, bass-reflex
 Maximum SPLNormal: 137 dB
Boost: 137 dB
 Frequency Range (-10 dB)Main: 50-20k
Monitor: 46-20k
 Frequency Response (±3 dB)Main: 56-20k
Monitor: 56-19k
 Input Connectors2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
 Input Impedance20K Ohms (balanced), 10K Ohms (unbalanced)
 Signal indicatorsLimit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio
 EQUser selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application
 Dynamic Control (Input)dbx Type IV™ limiter circuit
 Crossover Frequency2.0 kHz
 DesignHighly efficient Class-D amplifier
 Power Rating1500W (750W x 2)
 AC Power Input100V - 240V ~ 50/60 Hz
 LF Driver1 x JBL 275G (15 in) woofer
 HF Driver1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
 Coverage Pattern90° x 50° nominal
 Directivity Index (DI)10.2 dB
 Directivity Factor (Q)10.4
 EnclosureAsymmetrical, 18 mm, plywood
 Suspension / MountingDual 36 mm pole socket, 12 x M10 Suspension Points
 Transport1 x injection molded handle with backing cup
 FinishObsidian DuraFlex™ finish
 GrillePowder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
 Dimensions (H x W x D)701 mm x 446 mm x 359 mm
(27.6 in x 17.5 in x 14.1 in)
 Net Weight21.6 kg (47.5 lb)
 Gross Weight26.3 kg (58.0 lb)
