Audiophony CUBsat 4

AUDIOPHONY

Satelit till CUB mini Line array bestyckad med 1 st 4" + 3 x 0,5 soft doom. Perfekt till både live och alla installationer där man vill ha en liten men kraftfull högtalare.

Cube series Line-Array

Make the sound travel to the audience

Creating a discreet sound system with both an attractive design and high-quality output regardless of its location or usage is one of the hardest challenges to face.

“Modularity” is the cornerstone of this system

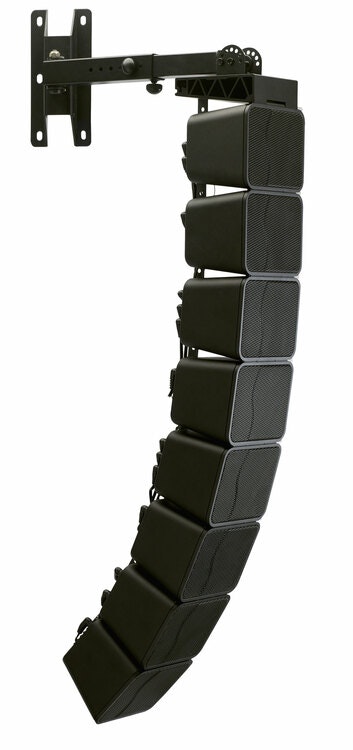

This concept is appealing, for both permanent and temporary installations. Our CUBsat4 speaker can be added to any regular multi-source installation, of course, but it can also be part of Line Array columns thanks to its smart coupling and angulation system, with up to 8 speakers per column.

Under this scenario, no need for a multitude of amplifiers or power sources since each speaker features its own built-in cabling system: only one amplifier is required to power up both your columns of
8 x CUBsat4.

Well thought-out fixation system
A wide variety of accessories is available, should it be for one speaker, a whole column, for a wall, a ceiling or a speaker stand, and any other case.

Two subwoofers designed to perfectly fit our CUBsat4 are available.

First of all, the CUBsub208, perfect for permanent installations thanks to its discreet design and its supplied wall-mount system.
Then comes the CUBsub112, which is an excellent addition to any temporary installation.

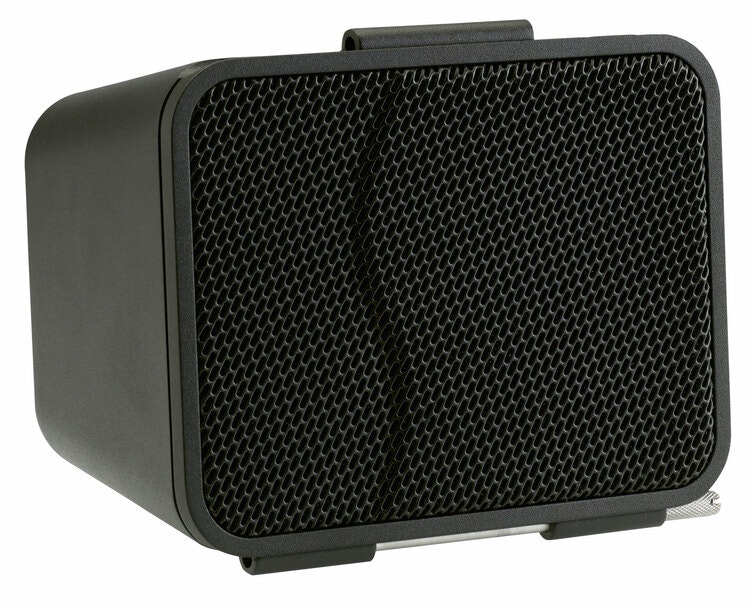

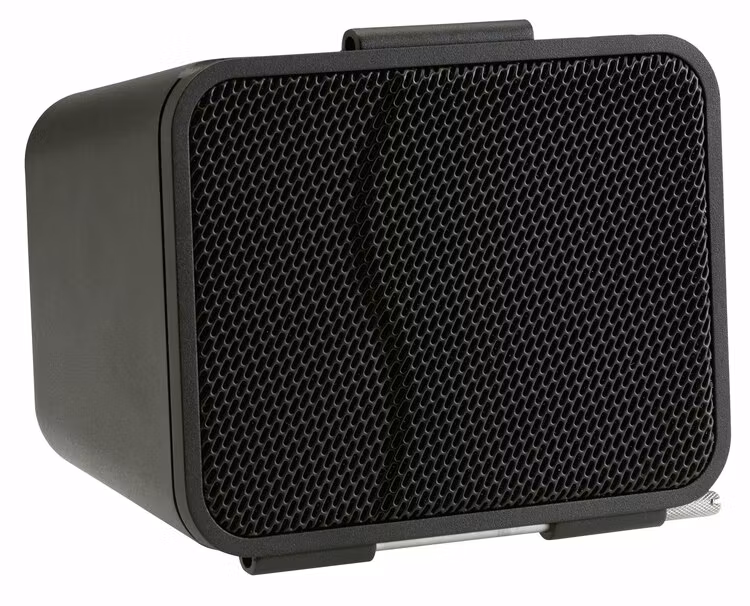

CUBsat4

Passive mini line array satellite

Our CUBsat4 speakers all feature an adjustable directivity (110° Horizontal x 20° vertical). This feature allows to modify the speaker dispersion in order to meet the acoustic requirements of most places.

By coupling several speakers together, and thanks to this adjustable directivity, you will create a Line Array sound system with adjustable angulation from 0° to 12°.

• Power output: 30W RMS - 90W max
• Frequency response: 100Hz -20KHz
• Filter : Passive 2-way filter at 3kHz
• Max SPL. (@1m): 91 dB
• Nominal impedance: 8 per module with built-in impedance transformer.
• Boomer: 4" (neodynium)
• Tweeter: 3 x 0,5’’ soft dome
• Dispersion: Wave guide pavilion (HxV) 110° x 20° per module
• Cluster orientation: 0°/4°/8°/12°
• Connectors: Via 3x Jack 6,35 Input and serial and parallel link
• Material:
- Die-cast aluminium housing and fixation bracket
- Steel pin and hinge
- Black finish

• Dimensions: 170 x 140 x 150 mm
• Net weight: 1,450 kg
