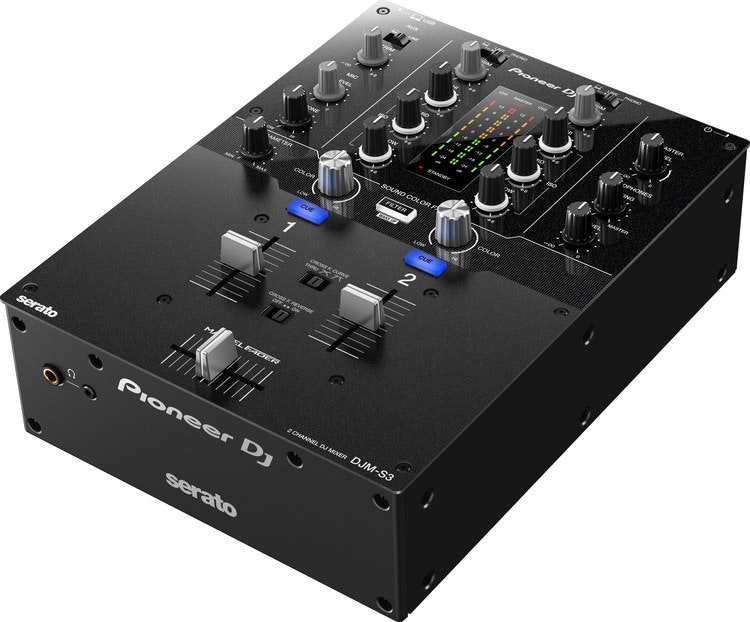

DJM-S3

Main Features

DVS Control

Serato DJ

Software System Requirements

Windows® 10, 8.1, 7 (latest service pack)

mac OS Sierra, X 10.11, 10.10 (latest update)

Processor:Intel® processor Core™ i7、 i5、i3 1.07 GHz

Memory: 32-bit, 64-bit: 4 GB or more of RAM

USB: Available USB 2.0 port

Free HDD Space: 5GB

Display resolution: 1280 x 720

For more information click here

Included Accessories

Power cord

AC adaptor

USB cable

Operating Instructions (Quick Start Guide)

Specifications

Width

230 mm

Height

108 mm

Depth

320 mm

Weight

3 kg

Frequency Range

20 - 20000 Hz

Sampling Rate

48 kHz

A/D Converter

24 bit

D/A Converter

24 bit

S/N Ratio Line

94 dB

Distortion

< 0.005 % (LINE)

Power Supply

AC adaptor DC 12 V

Power Consumption

600 mA

Channels

EQ/ISO

3 band

EQ/ISO Range

-∞ ~ +6 dB

Performance Control

Channels

2

Sound Color FX

Filter

Terminals

Inputs

3 LINE (RCA)

2 PHONO (RCA)

1 MIC (1/4 inch TS Jack)

USB

1 USB B port

Outputs

1 MASTER (XLR)

1 MASTER (RCA)

2 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
